Interconnected Door Lock Reversible Passage Lever, UL Fire Rated, ANSI 2, Contemporary Style Harper Collection
Product #: 87435 | Finish: Satin Nickel
Description
- Interconnected Lock With Deadbolt And Reversible Passage Lever
- Single Action Functionality
- Deadbolt Is Operated With A Key Outside And Thumb Turn Inside
- Deadbolt And Passage Latches Are Simultaneously Retracted By Lever Operation
- ANSI Grade 2
- ADA Compliant
- UL10C 3-Hour Fire Rated
- Door Prep: Cross Bore 2 1/8 Inch, Edge Bore 1 1/8 Inch
- Lever And Deadbolt Bores 5 1/2 Inches Center To Center
- Door Thickness: Fits Doors 1 3/8 Inches to 1 3/4 Inches Thick
- Faceplates: Radius Corners 1 1/8 Inches X 2 1/4 Inches
- Strikeplates: Radius Corners, Full Lip, 2 3/4 Inches X 1 1/8 Inches
- Backsets: Both Deadbolt and Passage Latches Adjustable 2 3/8 Inches to 2 3/4 Inches
- Bolts: Lever 1/2 Inch Throw
- Deadbolt 1 Inch Throw
- Lock Cylinder: Kwikset Type KW1 5-Pin Cylinder
- Levers Fabricated From Die Cast Zinc
- Escutcheon Fabricated From Stainless Steel
- Fabricated With Die Cast Zinc Levers And Steel Mechanism
- Satin Nickel Finish.

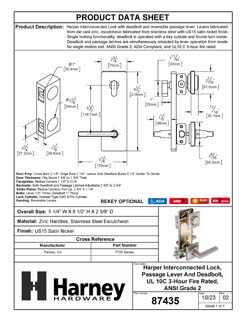

Data Sheet
